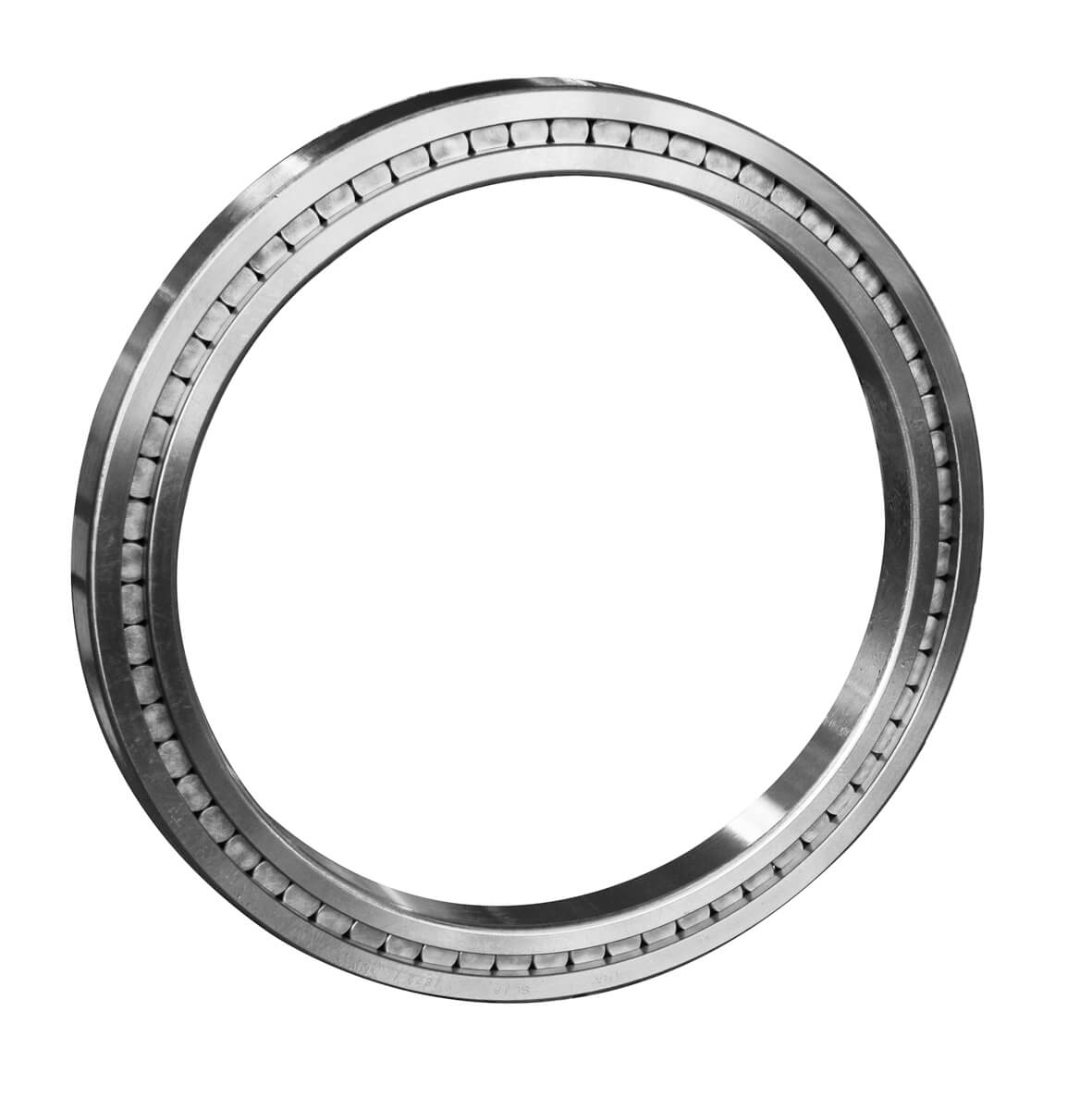

SL series full complement cylindrical roller bearings are usually guided by two flanges of one bearing ring, and the cage, rollers and guide rings form a single assembly, which is generally a separable bearing.
This kind of bearing is easy to install and disassemble, especially when the inner and outer rings are required to have an interference fit with the shaft and housing. These bearings are generally only used to bear radial loads, and only single row bearings with flanges in both the inner and outer rings can withstand small axial loads or large intermittent axial loads. Compared with deep groove ball bearings with the same dimensions, this type of bearing has a large radial load capacity and is structurally suitable for high-speed rotation.
We can provide a variety of cylindrical roller bearings in different sizes, including two categories: with cages and with fully loaded rollers. The minimum inner diameter is 20mm and the maximum inner diameter is 1200mm.
Feature
1.high load capacity
2.low noise and high speed
3.low friction between the rolling elements and the ring flange
